Construction spending had been chugging along very nicely from 2012 through 2016 with annual growth ranging between +6.5% and +11.0%. The average spending growth for those 5 years is 8.5%/yr. For 2017, spending growth will come in at only just over 5%.
Perhaps what may be more important is the inflation adjusted growth or constant dollar growth. Constant dollar growth measures volume. Volume growth ranged from +3.0% to +8.0% in the 5 years from 2012 through 2016. The average constant$ growth for those 5 years is 5.4%/yr. The rest of the spending growth was inflation dollars. For example: a year in which spending growth is 7% but that has 4% inflation ends up with only 3% constant$ volume growth.
From 2005 peak volume ($1,448 bil in 2017$) to the lows reached in 2011 ($954 bil), constant dollar volume dropped 34%. Since the 2011 low, volume has increased 31%. In rapid growth years volume increases between 6% to 8%/yr. In average or low growth years, constant dollar volume growth ranges closer to 2% to 3%/yr.
2017 will post the highest composite construction inflation in 11 years, 4.5%. Residential inflation has averaged 6%/yr for the last 5 years. With 2017 at 5% construction spending growth, the lowest in six years, and at the highest inflation in years, 2017 volume growth will fall to only +0.6%.
Residential, with nearly 12% spending growth in 2017, still holds onto the best volume growth in 2017 at slightly over 5%. Residential has recorded the highest volume growth in 5 of the last 6 years, the lowest coming in at +5%, averaging 8%/yr for 6 years.
Nonresidential Buildings constant dollars is down slightly for 2017, posting a volume decline of -0.2%. This was predictable since Manufacturing, after recording 90% growth from 2011 to 2015, has worked off a big backlog and dropped 15% (from an all-time high) in the last two years, most of that drop in 2017. For 2017 that drop offset $8 billion of growth from other markets. Nonresidential Buildings volume increased 20% in the previous 3 years.
Non-building Infrastructure volume is down 6% in 2017 after growing only 5% in the previous 2 years. However, the non-building infrastructure sector led all growth in 2014 at +8.5%. It should be noted that 2015 posted the all-time high for Infrastructure spending. The largest declines since then are in Environmental Public Works projects, Sewer/Water/Conservation. All three markets posted declines in new project starts in 3 or 4 of the last 4 years. Spending in 2017 is down 17% from the most recent high in 2015.
Public works spending is responsible for 80% of the dollar decline in non-building infrastructure spending since the high in 2015.
In 2018, Nonresidential Buildings and Non-building Infrastructure lead spending growth. Residential spending will slow considerably after six years of solid growth. Constant$ volume growth after inflation will climb back to +2.3% with the two nonresidential sectors over 5% and residential dropping to a volume decline.
SEE INFLATION TABLES HERE CONSTRUCTION INFLATION
These articles all relate to Constant dollars (Inflation Adjusted)
Is Infrastructure construction spending near all-time lows? This question is raised because I saw comments to this affect recently posted on a major national construction professional organization twitter feed.
First, this raises several other questions:
- Exactly what construction markets are being referenced as infrastructure?
- Does this reference include public work only, or both public and private?
- Are educational and health care being included as infrastructure?
- Does this reference constant inflation adjusted spending?
The construction markets typically referred to as infrastructure, in order of largest to least volume, include; Power, Highway, Transportation, Sewage/Waste Water, Communications, Water Supply and Conservation. Sometimes also considered are Educational (3rd after Highway), Healthcare (after Transportation) and Public Safety (2nd smallest).
If only public work is included, everything changes. Most (90%+) of Power spending is private, so it represents less than 3% of public work. The largest contributors in this case are: Highway (32% of public work), Educational (25%), Transportation (11%), Sewage (8%) and Water Supply (4%). No other market is greater than 3% of public work.

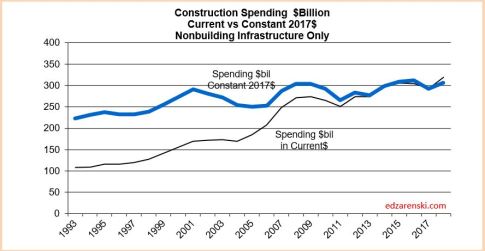

And finally, is the reference to current dollars as originally spent within each year, or to constant inflation adjusted dollars, adjusting all historical expenditures to constant 2017 dollars? Any comparison to determine if real growth has occurred should be in constant dollars, in this case all adjusted to 2017.
Typical infrastructure, not including educational, healthcare or public safety, but including all public and private sector work produces this result:
However, the most likely reference is to typical public infrastructure, not including educational, healthcare or public safety. This scenario includes only the public sector work of typical infrastructure and eliminates private spending. This eliminates 90%+ of all power work, 30% of transportation and 100% of communications, in total, more than $100 billion in current dollars. This is the result:
In both instances, the lows, whether using current or constant dollars, occurred between 1993 and 2004. The highs are recent, all occurring from 2007 to 2016. 2017 spending dropped somewhat from 2016, but this is still prone to revision, which is always up.
To answer the question, Is Infrastructure construction spending near all-time lows? NO! Infrastructure construction spending is not at or even near all-time lows. Public sector infrastructure is lower than All infrastructure, but All infrastructure is not even near recent lows. It is near all-time highs!
Infrastructure construction spending in June-August dropped to the lowest since November 2014. However, this was not unexpected. Cash flow models of infrastructure starts from the last several years show monthly spending dips and peaks. Current dips in spending are being caused by uneven project closeouts from several years ago. The actual current backlog is at an all-time high and spending will follow the expected cash flow.
Infrastructure starting backlog hit a new all-time high in 2017 and will again in 2018. Public Infrastructure new starts reached all-time highs in 2013 and 2015 and are on track to go higher in 2017. 80% of infrastructure spending within the year comes from backlog at the start of the year and that backlog may be comprised of jobs one, two, three and even four years old.
Infrastructure spending in 2017, although down slightly from the all-time high reached in 2015 and nearly equaled in 2016, will reach a new high in 2018.
(This analysis does not include any spending projections from an infrastructure investment bill).
Highway spending is currently benefiting from projects that started in 2015 but that have unusually high value and long duration. They contribute spending well into 2018 beyond the duration that typical projects have ended.
Transportation Terminal starts in the first three months of 2017 were more than three times higher than any three-month period in the previous five years. However, 2017 spending is still affected by uneven starts from two to three years ago, holding down gains in the 2nd half. Transportation will show only a 1% gain in 2017 but produces double digit gains in 2018.
Infrastructure construction spending is near all-time HIGHS and has been for the last several years. That is not meant to indicate there is no need for infrastructure investment. I think the need is well established, particularly for public infrastructure. However, I’ve been writing about infrastructure for more than a year, pointing out the level of activity in this sector and the difficulty that will arise when we try to increase work volumes. The approach to adding new work and the discussions surrounding this approach should reference accurate data, and that should include an accurate representation of current workload and future ability to absorb more work.
For much more in-depth related to infrastructure construction see this post Infrastructure Spending & Jobs
This is a summary of the main points on Infrastructure from several recent articles. Those articles detail current market conditions, growth already in backlog and future growth potential. The articles (linked here) are:
- Calls for Infrastructure Problematic
- Infrastructure & Public Construction Spending
- Infrastructure – Ramping Up to Add $1 trillion
- Infrastructure Outlook 2017 – Construction Spending
Non-building Infrastructure spending in 2016 will finish at $290 billion, down 1% from 2015. Negative drivers were Transportation, Sewage/Waste Disposal, Communications and Water Supply. However, Power and Highway/Bridge, 57% of all infrastructure, were both up. Spending based on projected cash flow from Dodge Data Starts predicted this drop.
- In 2017, Non-building Infrastructure, following two slightly down years, will increase by 4.4% to $304 billion, due to growth in the highway and transportation markets.
- Headlines point to a 6% decline in new infrastructure starts in 2017
- Starting backlog for 2017 increased 6% over 2016.
- The cash flow in 2017 from starting backlog will be up 10%.
Infrastructure currently has the highest amount of work in backlog in history. Starting backlog accounts for 80% of all spending within the year. Even with an anticipated decline in new starts in 2017, starting backlog for 2018 will still be at another new high. Spending from starting backlog is predicted to reach record levels in both 2017 and 2018.
- Total Construction spending for 2017 is more than $1.200 trillion.
- Infrastructure, public and private, is $300 billion, only 25% of total construction spending.
- Public is only 60% of all infrastructure, $180 billion, so 15% of total construction.
- Public Nonresidential Institutional Buildings referred to as infrastructure (Educ, HlthCr, Safety) adds another $95 billion, 8% of total construction.
The two largest markets contributing to public spending are highway/bridge (32%) and educational (25%), together accounting for 57% of all public spending. The next largest market, transportation, is only about 10% of public spending.
- Total Construction spending average constant $ growth post-recession is $50 billion/year. It exceeded $75 billion/year only once.
- Infrastructure, only 25% of total construction spending, increased by more than $25 billion in a single year only once. The average annual growth for the past 20 years (excluding recession yrs) is less than $10 billion/year.
- Public Infrastructure annual growth averages only $6 billion/year, has never exceeded $16 billion in a single year.
- Public Institutional Buildings annual growth averages only $6 billion/year, has never reached $20 billion.
Current backlog already accounts for 80% of all spending. Current spending growth from backlog (Public infrastructure + Institutional) is predicted to add $20 billion/year in work over the next two years. This will absorb some current jobs and create 100,000 to 150,000 new heavy engineering and nonresidential jobs.
For every $10 billion a year in added infrastructure spending, that also means adding about 40,000 new construction jobs per year.
Any infrastructure plan added, for the most part, needs to be considered as added on top of the current spending plan, $20bil/yr next two yrs, already at all time highs.
- Average growth in total construction jobs is about 270,000 jobs per year. The largest growth was 400,000 in 1999.
- Average post-recession growth in public infrastructure + institutional jobs is about 35,000 jobs per year. The best growth was 50,000 jobs/year.
Current data predicts public institutional and infrastructure spending and jobs growth, already above the long term average, is expected to increase slowly in 2018 but then by $20 billion/year for the next two years.
Adding $20 billion/year more in spending for an infrastructure expansion plan would push total public work to double record levels. It’s doable, but would be difficult to achieve and is probably not sustainable at that rate.
One limiting factor will be jobs growth. Also, the supply chain may not have the capacity to increase so rapidly, especially to think the industry could continue to expand at a historical rate of growth for years to come. In years past, expansion like this has led to rampant inflation within the industry.
Adding $100 billion in a single year to public infrastructure and institutional work is unrealistic. That is greater than the maximum level of growth for the entire construction industry. The portion of the industry we are dealing with here is less than 25% of the entire industry.
Adding $100 billion, a one third increase in annual spending for this sector, would require the distribution network surrounding the industry to expand equally as fast. It would need 300,000 to 400,000 new jobs filled in a year, in a sector that has at maximum grown 50,000 jobs in a year. That’s unrealistic.
The public infrastructure subset of the construction industry appears too small to accommodate an increase of $10 billion/year and 40,000 new jobs/year over current growth. When the potential projects pool is expanded to include public institutional buildings, that total pool may then accommodate an increase of $10 to $15 billion/year over normal growth.
Excessively rapid growth will only take volume and jobs away from normal growth, generally leads to rapid inflation and has a devastating effect when a massive program ends and all those jobs disappear.

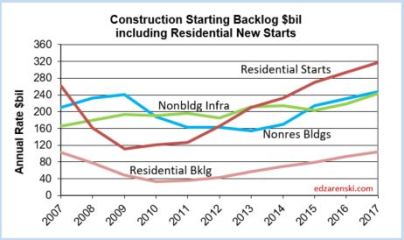

Starting Backlog is the Estimate-to-Complete (ETC) value of all projects under contract at the beginning of the year. Projects in starting backlog could have started last month or last year or three years ago. The requirement is that those projects have not reached their end-date and some portion of the revenues generated by those projects is still ETC. The sum of all ETC represents current backlog.
A cash flow schedule of all ETC backlog and predicted new starts provides a tool to predict future spending. The $ reported here are the results of a cash flow analysis using Dodge Data & Analytics Construction Starts. Do keep in mind the DDA Starts value represents a survey of about 50% to 60% of the industry. While the percent change of values from year to year is relevant, the $ value does not compare directly to the actual spending $ values.
It is not enough to look at just the change in starts or the change in backlog to get an indication of the strength of the market. While continued growth in backlog is most important, the predicted cash flow from backlog and new starts is necessary for predicting future spending.
The last time nonresidential buildings experienced a decline in starting backlog was 2013, Total construction spending on nonresidential buildings in 2013 registered a weak 0.8% gain. Since 2013, nonresidential buildings starting backlog is up 60%, reaching a new all-time high at the beginning of 2017. The previous high in 2009 was $241 billion. In 2016 it was $230 billion. For the start of 2017 it is $248 billion.
Revenues from starting backlog account for 75% of all nonresidential buildings construction spending within the year. If no new work started within the year, by year end there would be only 25% of the total in backlog needed to support the industry.
Not only is starting backlog higher coming into 2017, but also spending from backlog is predicted up by 5% and 2017 new starts are predicted up 8%. New starts are very strong in Office, Lodging, Educational, Healthcare and Amusement/Recreation.
This supports my predictions that 2017 will be another banner year for spending on nonresidential buildings, up a strong 10% from 2016. Similar growth is expected in 2018. This will produce a new high in current dollar spending, but will still be 15% below the constant $ all-time highs.
(edit 3-21-17 updated table)
Non-building infrastructure experienced declines in starting backlog in 2012 and 2015. Fortunately, in both of those years, new starts were up. For the last eight years infrastructure starting backlog has been near $200 billion, +/- $10 billion. In 2008, the last pre-recession year, backlog stood at $178 billion. At the beginning of 2017, non-building infrastructure backlog is at an all-time high, $243 billion, up 36% from 2008. In the last two years starting backlog is up 20%.
Revenues from starting backlog account for 80% of all non-building infrastructure construction spending within the year. However, because infrastructure projects are long duration, only about 60% of total backlog gets spent within the year. If no new work started within the year, by year end there would still be 55% of the total in backlog needed to support the industry.
In 2016, although starting backlog was up, new starts were down and spending from backlog was also down. That cemented a decline in spending in 2016. New starts in 2016 declined for power, highway, transportation and public works, but due to long duration projects contributing to strong backlog in these markets, spending will be up in all except public works. New infrastructure starts in 2017 are predicted down 5%, but spending from backlog is predicted to increase by more than 10%, and that more than offsets the decline in new starts. 2017 will post a solid gain of 4% to reach a new high in spending and that is expected to increase again in 2018.
Residential new starts hit bottom in 2009 and starting backlog hit bottom in 2010. Residential on average has the shortest duration and new starts has a dramatic impact on the amount of available work. Both new starts and backlog are up about 300% from the lows. New residential starts have increased every year since the 2009 bottom, but are still lower than 2006.
Due to the shorter duration of projects, nearly 70% of residential spending within the year is generated from new starts. Unlike nonresidential, backlog does not contribute nearly as much. If no new work started within the year, within a matter of a few months there would be no backlog ETC left to support the industry.
Coming into 2017, starting backlog is up, and new starts are up and spending from new starts is up. But the rate of growth in new starts and spending from new starts is slowing. This is not unexpected after 4 years (2012-2015) of new starts growth averaging greater than 20%/year. The last two years it’s 12%/yr. This leads to a prediction of future spending increases ranging between 5% to 7% for the next two years.
Few analysts are talking about current forward looking conditions and the problems such a massive infrastructure construction spending program might cause.
Every major construction agency is currently seeing monthly infrastructure construction spending drop and is calling for promptly initiating a $1 trillion infrastructure spending program. Infrastructure spending has been flat to down slightly for the last seven months. But infrastructure spending is notoriously uneven. I’d like to see increased construction spending as much as the next guy, but there are issues that need to be taken into account. I see problems down the road.
I’ve written about this before here Infrastructure – Ramping Up to Add $1 trillion and here Infrastructure & Public Construction Spending and Conor Sen wrote about it recently in a Bloomberg View article Math Will Kill Trump’s Infrastructure Plan. Some assumptions of increasing infrastructure spending by $100 billion and maintaining that level for the next 10 years are a pipe dream. Only three times in history has the “entire” construction industry ever increased by $100 billion in one year. The infrastructure sector, only 25% of all construction, does not have the capacity to grow by $100 billion in a year.
One of the big issues a massive expansion and abrupt program end causes is the need for a huge growth in the workforce, and that could be difficult particularly at a time when the non-working unemployed pool is near an all-time low. But perhaps more important, when all that expansion spending comes to an end, there is no long term ongoing backlog for all that labor to go to, so it results in massive job losses. Very large volume new starts and abrupt ending causes devastating disruption in the industry.
Here I will address spending and volume growth.
The infrastructure sector of construction is only 25% of all construction. Growth has exceeded $20 billion/year only three times and average growth (without recessionary declines) is $12.5 billion/year. But most of that was driven by the power market, which is 80% private. Power contributes 1/3rd of all infrastructure spending. Only 60% of all infrastructure is publicly funded. That public subset of work in the last 25 years has grown by $20 billion/year only once and with all the negative recessionary years eliminated growth would average less than $10 billion/year.
To repeat, because this provides a concept of the capacity of the industry, the entire infrastructure sector has an average growth rate of $12.5 billion/year and the public infrastructure sector less than $10 billion/year. And that’s taking out all the down years. It’s worth a note here that although I have conveniently removed down years from the data to get an average positive-year growth rates, infrastructure spending has never grown continuously for more than five consecutive years without experiencing a down year. The last 5 years 2012-2016 shows 3 years up 20%, then 2015 and 2016 were both down 1% to 1.5%. At the end of 2016, down 2.5% from the high in 2014, spending is still near all-time highs. In constant 2016$, The high was Q1’16 at $300 billion. The average lately is $280 billion, but expect to be back over $300 billion by Jan 18.
Infrastructure currently has the highest amount of work in backlog in history. Current backlog already accounts for 80% of all spending in 2017 and 60% of spending in 2018. Even with an anticipated decline in new starts in 2017, starting backlog for 2018 will still be at another new high. Spending from starting backlog is predicted to reach record levels in both 2017 and 2018. Early indications are that 2019 will repeat the same but that will depend on new starts in 2017 and 2018. Ignoring 2019 and beyond for the moment, for the next two years we are looking at record levels of spending on infrastructure.
The projected growth rate in infrastructure spending for the two-year period 2017-2018 is expected to reach the largest growth since the period 2005-2008. Construction Analytics (this analyst), FMI and ConstructConnect all predict growth between 10% and 13% or between $30 and $40 billion for this two-year period. My forecast does not include any spending input from a future infrastructure spending plan.
I said earlier that adding $100 billion and maintaining that level of spending for the next ten years is an unrealistic approach. Essentially, that would create an instantaneous need for 400,000 new jobs in the 1st year and then provide no jobs growth for the next nine years. Construction jobs can’t grow that fast. The maximum jobs growth ever achieved for all infrastructure was 50,000 jobs in a year. And now it’s worth repeating, only 60% of infrastructure is public work.
I’ve suggested another scenario for how it might be possible to ramp up to spend $1 trillion. In another article, Infrastructure – Ramping Up to Add $1 trillion, I laid out how it could be done in 13 years if spending were increased by $10 billion each year. I’ll add here that the entire infrastructure sector has not added a total of $1 trillion new spending in 25 years, so it’s quite unreasonable to assume it could be done in 10 years.
Infrastructure spending for 2017-2018 is about to exceed the historical average growth rate. Any infrastructure plan will replace some, but not all, of the currently planned new work. But it won’t replace any work already in backlog, which is at record levels and still contributes to spending over the next four years. So any infrastructure plan, for the most part, needs to be added on top of the current spending plan.
It would be extremely difficult to increase spending by another $10 billion/year when current spending is already expected at record levels. In fact, the look ahead for 2018 has spending already increasing by more than $20 billion. There is nothing in our history to suggest we could double the growth rate and sustain that level of spending. Of course, this will point back to the discussion of balance of jobs/volume and available labor in a potentially tight labor market.
The public infrastructure subset of the construction industry appears too small to accommodate a plan to add $1 trillion in spending, even when it only increases at $10 billion/year and absorbs 40,000 new jobs/year. Either the base that we hope to grow needs to be larger from the very beginning (Can public educational buildings be considered part of the plan?) or the rate of growth needs to be slower. Excessively rapid growth will only take volume and jobs away from normal growth, generally leads to rapid inflation and has a devastating effect when a massive program ends and all those jobs disappear.
Everything above here is based on new infrastructure plan spending “increasing” total construction spending. The plan is very difficult to achieve. However, if the $1 trillion dollars were used to fund projects that are already within the $150 to $170 billion in new public infrastructure projects that start every year, then there are no issues at all as to how fast or how much in funds can be spent. But that provides for no growth to the industry not already accounted for in the normal growth rate and it provides no new jobs. It simply funds projects that would have been built otherwise and funds the workers already in the industry to keep working. I don’t think this is what everyone has in mind.
For more on this discussion see Infrastructure Spending & Jobs This is a summary of the main points on Infrastructure from several recent articles. Those articles detail current market conditions, growth already in backlog and future growth potential
Infrastructure work does not normally grow in leaps and bounds.
Seldom does infrastructure construction spending grow by more than $10 billion in a year. Rarely does it grow by more than $20 billion.
Currently at about $300 billion a year, infrastructure represents only about 25% of all construction spending. The infrastructure sector is comprised of the longest duration type projects such as energy, highway/bridge, transportation terminals, railway and water/waste water resource development. It is not unusual for projects to take four to five years to reach completion.
Increasing new construction starts by $40 billion for new infrastructure work in any given year on average might add only $8 to $10 billion in spending in each of the next four or five years. To increase spending by $10 billion a year we would need to increase new starts by $40 billion every year. We’ve only ever come close to adding $40 billion in new starts once, in 2015.
In 2015, new infrastructure starts increased by $38 billion or 27%, due to an increase of $13 billion in new power generation plants and an increase of $21 billion in new LNG plants and port facilities. That will keep infrastructure spending growth elevated throughout 2018 and 2019. Measuring a total increase of 250% in power projects, that is a scenario unlikely to be duplicated in coming years.
2017 spending comes from: 10% 2014 starts; 35% 2015; 35% 2016 and 20% new starts in 2017.
Although new infrastructure starts were down in 2016 and are expected to decline again in 2017, the amount of work in backlog at the start of 2017 is the highest its ever been and spending in 2017 is forecast near the all-time (2015) high. Spending in 2018 from backlog will increase again and 2018 will hit another all-time high. There are no annual declines in spending predicted for the next four years. Some very large public infrastructure projects that started in 2014, 2015 and 2016 still contribute large amounts to spending in 2017 and well into 2018.
Increasing infrastructure spending by $10 billion a year would require adding about 35,000 to 40,000 new construction jobs per year. To accommodate all growth since the recession bottom, this sector averaged adding only 20,000 new jobs per year. Current spending growth is predicted to add $40 billion in work over the next three years and this will absorb all new heavy engineering jobs growth. The non-building infrastructure sector does not have the capacity at this time to increase spending by another $10 billion/year over its current growth rate, nor does it have the capacity to add an additional 40,000 jobs per year.
This summary of current projected spending does not include any future infrastructure work that might be generated from a proposed $1 trillion spending plan.
It is important to note here that 90% of all work in the power sector is private work. Only 60% of infrastructure work is publicly funded. However, some nonresidential building is publicly funded.
Public spending is not all public works projects.
Most public work is infrastructure, or public works projects. However, not all infrastructure is public work. The power market is the largest infrastructure market. But, already noted above, power work is mostly private. So the market responsible for one third of all infrastructure work is 90% private. Educational projects, typically considered nonresidential buildings, are 80% public and 20% private.
The two largest markets contributing to public spending are highway/bridge (32%) and educational (25%), together accounting for 57% of all public spending. The next largest market, transportation, is only about 10% of public spending.
Highway/bridge work fluctuates the most with large monthly swings up or down. However, 4 out of 5 times over the last 12 years, any large monthly move up or down was accompanied by a partially offsetting opposite move the following month. Highway spending hit an all-time high in 2015 and again in 2016.
Two of the three largest annual growth increases ever recorded in public spending were driven by educational spending. In the third largest growth year, highway just barely edged out educational spending for the top spot.
If educational work were to be considered part of future infrastructure expansion, then the maximum capacity to increase public infrastructure spending obviously increases. Together with other public works projects this could potentially provide a large enough market base to increase public infrastructure spending by $10 billion a year over and above the growth already in backlog or anticipated. But most of the added work would need to be to the education market. Even with potentially adding educational market work to the infrastructure expansion plan, the hope of expanding infrastructure spending by another $10 billion/year remains difficult at best.
Any increase to future work needs to be considered as over and above the spending growth patterns already due to work in backlog and new starts anticipated. This plot of predicted public spending does not include any future infrastructure work that might be generated from a proposed $1 trillion spending plan. About 80% of all spending in 2017 is already in backlog. About 50% of all the spending from Jan. 2018 through Jan. 2020 will already be in backlog by Jan. 2018.
The following article is an extension of this discussion Calls for Infrastructure Problematic
How long would it take to accommodate adding $1 trillion of new infrastructure construction spending?
I read this in another recent article on the topic; “If passed, the ripple effect of an estimated $100 billion a year in new infrastructure construction would undoubtedly be felt throughout the industry.”
The article seems to imply the industry could absorb $100 billion in new infrastructure work and maintain that $100 billion added spending for 10 years. The infrastructure sector could not accommodate that massive amount of instantaneous growth. Let’s look at maximum historical rates of growth to understand why.
To really understand construction growth rates we need to look at all historical spending in constant dollars (inflation adjusted).All constant dollars in this analysis are converted to 2016$.The following spending historical data goes back to 1993. Jobs data goes back to 1970.
- Construction Industry total spending fastest rates of growth:
- Maximum growth one year, 2015, +$107 billion, in 2016$= $87 billion
- 2011 – 2015, 4 yrs, +$324 billion, in 2016$ = +$240 billion = $60bil/yr.
- 1995 to 1999, 4 yrs, +$200 billion, in 2016$ = +$200 billion = $50bil/yr.
- Infrastructure Sector spending fastest rates of growth:
- Maximum growth one year, 2007, +$40 billion, in 2016$= $36 billion
- 2005 – 2008, 3 yrs, +$87 billion, in 2016$ = +$52 billion = $17bil/yr.
- 1997 – 2001, 4 yrs, +$50 billion, in 2016$ = +$46 billion = $15bil/yr.
- Construction Industry Jobs fastest rates of growth:
- Maximum growth one year, 1999, 397,000 jobs
- 4 years from 1995 to 1999, average 317,000 jobs/year.
- 3 years from 2012 to 2015, average 266,000 jobs/year.
- Infrastructure Sector Jobs fastest rates of growth:
- Maximum growth one year, 2004, 65,000 jobs
- 3 years from 2003 to 2006, average 48,000 jobs/year
- 3 years from 2011 to 2014, average 26,000 jobs/year
The fastest one-year growth for the entire construction industry is $87 billion in 2015, but the fastest growth rate is never maintained for long. The period 2011-2015 is the highest average rate of growth at $60 billion/year. The entire industry has had jobs growth of more than 300,000/year only 6 times since 1970. 1995 to 1999 is the only period to average over 300,000 jobs/year longer than 2 years.
Infrastructure is only 25% of all construction work. The entire construction industry best growth rate ever achieved (in 2016$) absorbed $1 trillion in new spending over 5 years. Infrastructure has not absorbed $1 trillion newly added work in 25 years. The fastest one-year growth for the Infrastructure sector is $36 billion in 2007, but the highest average rate of growth is $17 billion/year. The current rate of growth since the recession is $10 billion/year.
The infrastructure sector has had jobs growth of more than 40,000/year only 3 times since 1993. Maximum jobs growth hit 65,000 in 2007. The best average jobs growth is 48,000 jobs/year and that has not occurred in the last 10 years. It’s the only period with average growth more than 26,000 jobs.
Let’s assume the fastest rates of growth can be duplicated once again. Let’s also assume that longer term growth will come closer to the long term average highs. So, infrastructure growth might reach $36 billion in a given year but could fall back to an average growth of $17 billion/year. Jobs could grow by 65,000/year but would probably average less than 48,000/year.
However, even with the addition of a new influx of infrastructure work, most of the other growth, which has been fairly constant for the last 25 years, is not going to go away. Since the recession, infrastructure has been increasing at $10 billion/year and jobs have been increasing 20,000/year. Assuming we maintain that level of normal infrastructure growth, then the remainder is what we might expect to accommodate in growth from new infrastructure stimulus.
If we could achieve maximum rates of growth we could increase infrastructure additionally through new stimulus by $26 billion/ year and increase jobs by 45,000/year.
If we could maintain long term best average rates of growth we could increase infrastructure through new stimulus by $7 billion/year and increase jobs by 28,000/year. Even if a portion of the normal growth goes away, it looks like the infrastructure sector could only accommodate adding about $10 billion/year in new stimulus work.
It must be noted that a large portion of infrastructure spending is private work, not publicly funded. Power is 90% private, 10% public. Highway is 100% public. Transportation is 30% private, 70% public. Sewage, Water and Conservation are 100% public. Communication is 100% private.
Fully 35% of all infrastructure work is private. Most of the huge increases in spending over the years are associated with the Power market. So this analysis counters any argument that publicly funded infrastructure can grow much faster. In fact, if only public works were taken into account, spending targets here would need to be reduced by 35% and the total duration to complete would be increased by 50%.
A cash flow schedule of all newly added work provided the plan needed to balance spending. All new work is assumed to take 4 years to complete. In the first year, $40 billion of new work starts, but only $10 billion gets spent. Spending flows at the rate of $10 billion/year for 4 years. New starts are added at a rate to continuously increase spending by $10 billion/year. By the 5th year we need to add $80 billion in new starts to get $20 billion in spending since all of year 1 work is now completed.
This table gives an indication of how cash flows. The full 13 year table is below.
I have assumed that inflation will add 4%/year to future spending. Five years from now the equivalent to adding $10 billion a year will be $12.2 billion a year. Due to inflation, we would spend $1 trillion to build the equivalent of $750 billion in today’s dollars. Increasing spending by the inflation adjusted equivalent of $10 billion per year, it would take 12 to 13 years to spend $1 trillion.
This scenario would push total infrastructure spending to the highest rates of long term growth on record. It’s not very likely growth like that could be sustained for very long. So, it’s possible total growth would fluctuate yet that we still keep our sights on achieving those long term growth rates. This allows for no economic downturn at any time in the next 10 years.
Another restraint to maximum growth rates is jobs. Infrastructure is only 25% of all construction. Maximum all construction jobs growth has exceeded 300,000/year a few times, but infrastructure jobs have increased by more than 40,000 only rarely and only once averaged over 40,000. While it takes about 5,000 to 6,000 workers to put-in-place $1 billion in construction, it takes only about 3,000 to 4,000 workers to put-in-place $1 billion of infrastructure. To reach maximum growth of $36 billion in infrastructure would require 110,000 to 140,000 new jobs per year, two to three times the long term growth. This analysis does not take into consideration any shortfall in jobs due to labor availability.
Setting spending growth to $10 billion/year results in 10 years of continuous record jobs and spending growth. Expectations of increasing infrastructure spending (not to be confused with starts) by $40 billion/year or $50 billion/year have not taken into consideration the maximum sustained growth rates in the industry. Talk of increasing infrastructure spending by $100 billion in a year is fantasizing.
In recent reading I came across a comment that both Educational and Health Care markets potentially could be included in Infrastructure funding. I take that to mean the public portion of those markets. Educational could be considered infrastructure and is 80% public ($70/$88bil). I would guess also Public Safety and Public Power could be included. Educational public spending is $70 billion/year. The others are $8 billion each. The short version of all the explanation above is that new infrastructure investment can grow a market at about half of the best total long term average growth of 10%/year. So these markets could absorb growth of about 5% or about $5 billion/year more.
More about Infrastructure written 3-6-17 Calls for Infrastructure Problematic
2-1-17 Upated to include Decmber data
Non-building Infrastructure spending in 2016 will finish at $291 billion, down less than 1% from 2015. Spending based on projected cash flow from Dodge Data Starts predicted this drop. The negative drivers were Transportation, Sewage/Waste Disposal, Communications and Water Supply. Power, the largest infrastructure market at 34% of total sector spending, will finish up 3.3%. Highway/Street, 31% of total sector, will finish up 2%.
In 2017, Non-building Infrastructure, following two down years, will increase by 4.4% to $304 billion, due to growth in the highway and transportation markets. In the most recent quarter spending began to recover from 2016 lows posted in August and September. 2017 will be a record year for Infrastructure spending supported by spending generated from the Fixing America’s Surface Transportation Act and potentially the Water Resources Development Act.
Annual percent growth in new starts (backlog), by itself, is not necessarily a good indicator of spending in the following year. The duration of backlog must be known to forecast spending.
At the beginning of 2016, work in backlog had increased 9% over 2015, but because a large percentage was very long duration work, the amount of cash flow (work put-in-place) in 2016 from that backlog decreased from 2015.
At the beginning of 2017, work in backlog increased only 6% over 2016. What is significant though is that the amount of cash flow in 2017 from that backlog will be up 10%. That is being caused by long duration work-to-complete backlog from 2014 and 2015, which is dominated by spending in the power market. In the 1st five months of 2015, a years worth of Power work started and it’s not yet completed. It’s still contributing to infrastructure spending in 2017.
Although new starts in 2016 will finish down 6% from 2015, starts in 2015 were so strong that 2016 will still be a high volume of new starts. 2015 was up 25% from 2014. So, even though headlines will point to a 6% decline in new infrastructure starts in both 2016 and 2017, due to the distribution of spending from backlog, 2017 spending will post the largest growth in 3 years. 2017 will be a record year for spending on infrastructure, up more than 4% from 2016.
Infrastructure construction starts and spending is dominated by movements in Power and Highway markets. Power/Electric/Gas and Highway/Bridge/Street, about equally, comprise 65% of all infrastructure spending. Transportation/Air/Rail accounts for 15%. Sewage/Waste 8%, Communication 6%, Water 4% and Conservation 3%.
Power is 90% private, 10% public. Highway is 100% public. Transportation is 30% private, 70% public. Sewage, Water and Conservation are 100% public. Communication is 100% private.
Power project starts dropped 25% in 2016 but from the highest annual total of starts on record in 2015. In addition, power had very strong starts in late 2014. All of those very strong starts in late 2014 and all of 2015 are still ongoing in backlog and will contribute to strong spending in 2017. Almost half of all the spending in 2017 is generated from projects that started in 2014 and 2015. Power spending in 2017 will increase 2% over 2016 for a 6th consecutive year of near $100 billion in spending.
Highway/Street, the second largest public market, reached all-time highs in spending from the 3rd quarter 2015 through the 1st quarter 2016. After a 6 month slow down, spending in November again reached a new all-time high. Highway spending in 2017 will grow 5% over 2016.
Transportation hit all-time highs in spending all during the 2nd half of 2015. Spending declined by 6% in 2016 but is still the second highest year on record. It will again equal those 2015 highs throughout all of 2017. Transportation spending in 2017 will grow 6% over 2016.
Projected impact of proposed infrastructure stimulus:
- None of the starts or spending detailed above includes any projections of potential work from future stimulus.
- Infrastructure spending, about 25% of total construction spending, increased more than $25 billion in a single year only once. The average annual growth for the past 20 years is less than $10 billion/year. Although infrastructure growth is always erratic with no growth some years, the average growth for the last six years (post-recession) has averaged $10 billion/year. Some of those years included prior stimulus growth.
- The annual growth in PUBLIC Infrastructure has never exceeding $20 billion in a single year and averages only $7 billion.
- The average growth in infrastructure jobs (excluding all recessionary years because those years would make the result approach zero) is about 25,000 jobs per year.
- Based on infrastructure proportion of all construction, and on both all construction and infrastructure historical maximum rates of spending and jobs growth, it may be unrealistic to anticipate more than $10 billion/year growth in the infrastructure sector. ie., (from current total add $10bil yr1, $20bil yr2, $30bil yr3, etc.) See Infrastructure – Ramping Up to Add $1 trillion for more detailed explanation.
Can the construction industry even accommodate adding $1 trillion of new infrastructure spending over 10 years?
It takes about 5000-6000 new jobs to support $1 billion of new construction work for a year. For infrastructure the number is lower. So $100 billion per year continuous for next 10 years would support about 400,000 new jobs for 10 years. Well, that’s not how it will happen, so let’s look a little closer.
- Historically the fastest rate of growth in spending takes about 3 years to increase 50%. That is for selected markets, never for the entire industry.
- Infrastructure spending grew 50% in 4 years from 2004 to 2008, when that sector was half the size what it is today.
- Infrastructure, about 25% of total construction spending, added spending more than $25 billion in a single year only once. The average annual growth for the past 20 years is less than $10 billion/year.
- Historical growth in jobs rarely exceeds 300,000 new jobs per year. It has never averaged that rate of growth for more than a 3 year stretch. That is for the entire industry.
- Spending after inflation (real volume growth) for all construction increased an average of $50 billion per year for the last 4 years. The same is expected in 2017.
- Jobs increased an average of 250,000 per year for the last 4 years.
- We could expect approximately the same growth in volume and jobs in 2018.
So here’s what we know. The entire construction industry has been growing on average at about $50 billion in volume and 250,000 jobs every year in recent data. Even with the addition of a new influx of infrastructure work, most of that other growth is not going to go away. But how much growth can the entire industry accommodate without bursting at the seams. Let’s make some broad assumptions to see what happens.
Let’s assume for the next 10 years the normal rate of new construction growth gets cut in half. In reality it probably wouldn’t, but we need to push some numbers to extremes to see what happens. So normal new volume, not including any boost from new federal infrastructure spending, might only grow at $25 billion per year and that would absorb 100,000-1250,000 new jobs per year. That accounts for HALF of the entire industry volume growth and jobs growth. How much room does that leave for new growth or expansion in industry growth rates?
If we fill the difference with work from added new infrastructure spending, we can add $25 billion per year in new infrastructure spending and that will add about 100,000 new jobs per year. To account for how the work might be contracted out, let’s just assume in the first year we commit to $250 billion in contracts that are spread over 10 years to get to $25 billion a year in spending. In the 2nd, 3rd and 4th years we could also commit each time to another $250 billion in 10 year contracts that spread the spending out to $25 billion per year for 10 years.
By year 4, we’ve added $100 billion per year in new spending that will stretch out for the next 6 to 10 years ( note: this pushes spending $1 trillion out to 13 years). This spread of money over time, or cash flow, results in increased spending in the government infrastructure markets by 50% in 4 years, matching the best ever industry growth rates. We’ve increased jobs by 100,000 per year for 4 years to a total of 400,000 new jobs and they will all have funds to continue work for the next 6 to 10 years. All that just due to added infrastructure spending.
But let’s not forget the rest of the industry. This would push total spending growth and total industry jobs growth to the highest rates of growth on record. So this is a scenario that is unlikely to be achieved, and it’s not very likely that growth like that could be sustained for very long. It’s also not likely the rest of all the new growth in the industry is going to get cut in half to leave room for new added infrastructure work. So, it’s possible total growth over the next 4 years would be less than anticipated here. This allows for no downturn at any time in the next 10 years.
It begins to seem like it might be pretty difficult to add $1 trillion in spending to the infrastructure construction sector, which is only 1/4 of the entire industry, to be spent in the next 10 years.
When sometimes we push numbers to extremes just to see what happens, we get an unexpected picture of what might, or might not, be possible.
Summary 2016 Construction Spending
Total Construction Spending for July reached a seasonally adjusted annual rate (SAAR) of $1.15 trillion, level with June which was revised upwards by $20 billion or nearly +1.8%. Monthly spending always gets revised in subsequent months. This year every month but May, which remained nearly unchanged, has been revised upwards, by an average of +1.4% and as much as 3.4%. Monthly values are subject to revision for two months after the first release and once again in May of the following year.
This plot, Construction Spending vs New Starts Cash Flows, shows actual spending (SAAR) by sector through July 2016 and projected trends of spending out to July 2017.
Previously I wrote that we should expect a short duration downturn in spending occurring between January and March. The expected monthly spending cash flows that would be generated from uneven new starts over the last two years indicated that a slowdown in spending would occur during the first quarter 2016. As it turns out, first quarter spending was much stronger than expected, averaging $1.17 trillion SAAR, primarily due to outstanding results in February and March for residential spending. But then April and May experienced significant declines, dropping to an average of only $1.14 trillion SAAR, down almost 3% from Q1. Now with June and July spending both up 1% from the April and May lows, it looks like we may be past that short duration downturn.
Total Construction Spending year-to-date (YTD) through July is up 5.6% over the same seven months 2015. Spending slowed in April and May from a 1st quarter average of $1.17 trillion that reached close to a 10 year high and falls just 4% short of the all-time high. However, it must be noted, that compares unadjusted current dollars, values of all dollars current in the year spent.
When comparing inflation adjusted constant dollars, all dollars adjusted to the same point in time, we can see 2016 spending is still 18% below the 2006 highs.
Total spending YTD through July is slightly ahead of what I predicted back in December, but it’s slightly below what I expected for May, June and July . I expect 2nd half spending to average above $1.2 trillion SAAR, but slightly lower than I originally forecast.
I’ve revised my 2016 spending forecast down slightly to total $1.190 trillion, up 7% from $1.112 trillion in 2015.
How does actual spending YTD compare to my prediction at the beginning of the year?
- Total predicted YTD through July $638.2b, actual YTD $647.7b (+$9.5bil, +1.5%).
- Residential predicted YTD $245.1b, actual YTD $259.2b (+$14.1bil, +5.8%).
- Nonresidential Bldgs predicted YTD $236.9b, actual YTD $228.1b (-$8.8bil, -3.7%).
- Non-building Infrastr predicted YTD $156.2b, actual YTD $160.5b (+$4.3bil, +2.8%).
Where are the revisions?
The single largest reduction in spending is in Nonresidential Buildings Manufacturing. Although there are other variances, that could account for the entire revision downward. Predicted construction starts for Manufacturing was lowered by nearly 35% after the initial start-of-year forecast was made.
Non-building Infrastructure spending increase is being supported by a 20%+ increase in power, which I didn’t expect. New starts for power projects have increased more than 20% since the initial forecast.
Residential construction had unusually large gains in February and March, almost all of that in residential renovations, offset only partially in April through July by declines mostly in new single-family housing.
Here’s my revised 2016 spending forecast based on YTD spending and new construction starts through July, compared to my prediction in December 2015.
- Total predicted Dec 2015 $1,206.2b, July 2016 $1,189.9b (-$16.3bil, -1.4%).
- Residential predicted Dec 2015 $473.8b, July 2016 $481.8b (+$8.0bil, +1.7%).
- Nonresdntl Bldgs predicted Dec 2015 $439.2b, July 2016 $410.9b (-$28.3bil, -6.4%).
- Non-bldg Infrastr predicted Dec 2015 $293.2b, July 2016 $297.3b (+$4.1bil, +1.4%).
Spending and construction starts are often confused by some analysts who refer to starts data as spending. Starts represent total project value recorded in the month the project begins. To determine spending activity, starts values must be spread out over the duration of the projects. Spending is dependent on cash flows each month generated from all previous construction starts. Cash flows expected based on Dodge Data construction starts are indicating a return to growth in spending in the 2nd half 2016. (See chart above Index Actual Construction Spending vs New Starts Cashflows).
Spending Breakout by Sector
Residential construction spending for July totaled a SAAR of $452 billion, remaining near level for the last four months. Residential spending YTD through July is up 6.5% over 2015. Spending slowed in April and May from a very strong 1st quarter average that reached close to a 10 year high. The current 3-month average is just 1% below the 1st quarter and is still at its highest since the 2nd half of 2007 but is 10% below the current dollar all-time high in 2006. I’m still expecting some upward revisions to June or July residential spending.
Residential spending just experienced the strongest three-year stretch of spending growth on record, up 60% in 2013-2014-2015. After taking out inflation, volume growth was only 31%, but that is still the strongest ever for three consecutive years. Spending growth in 2016 will reach only +9%. After adjusting for inflation that represents volume growth of less than +4%, the slowest in 5 years. New starts YTD (as reported by Dodge Data) although down from the 1st quarter, are still near post-recession highs. Starts from late 2015 and early 2016 will still be generating spending into early 2017. 2017 will repeat nearly identical to 2016. What we may be seeing is that it might be difficult to register another year of very high percentage growth in 2016 or 2017 because it is being measured against the 2015 10-year high. Another factor limiting very high growth may be a limited supply of labor to expand the workforce.
Total Nonresidential SAAR spending for July is $701 billion, down slightly from June, but monthly SAAR has varied only +/- 1% for the last six months. YTD spending compared to 2015 is up 5.1%. Nonresidential spending also slowed in April and May but is now up 1.5% from those lows. The current 3-month average is up slightly from the 1st quarter and is just 3% below the pre-recession 2008 current dollar high.
Nonresidential Buildings spending for July totaled a SAAR of $403 billion, down slightly from June but up 1.3% from the May dip. Spending YTD for nonresidential buildings through July is up 8.0% over 2015. The current 3-month average of $403 billion is up slightly from the 1st quarter but is still 9% below the peak in 2008.
Non-building Infrastructure spending for July fell to a SAAR of $289 billion, down only slightly over for the last four months. YTD spending through July is up only 1.3% over 2015. Spending began to slow in April and May and is now at the 2016 low. The current 3-month average is down 4% from the 1st quarter. However, spending on nonbuilding infrastructure reached an all-time high in the first half of 2014 and has remained near those highs through 2015 into the 1st quarter of 2016.
Public spending average for the 1st six months of 2016 is the highest since 2010 and is up 10% from the 2014 low point. YTD public spending is up 0.2% from 2015. All of Highway plus 80% of Educational makes up 55% of all public construction spending. The next largest markets, all of Sewage/Wastewater plus 70% of Transportation accounts for only 19% of public sending. All other markets combined make up less than 20%.
The biggest mover to total public spending this year is educational spending. Public educational spending is up only 4.0% YTD, but because it represents almost 25% of all public spending, it’s has a bigger net impact of +1.0% on moving the trend up than any other single public market. Public commercial spending is up 36.6% YTD but has only a 1% market share of public work. Highway and street is up 2.6% YTD. At 30% of total public that results in a net move of +0.8%. Office, public safety, power, sewage/waste disposal and water supply are all down YTD by a combined -5.3%. At a combined market share of 21% that nets a -1.1% reduction in YTD public spending.
Private spending is dominated by a 52% market share of residential work. At 6.6% growth that nets 3.4% growth in private spending. Several of the nonresidential building markets have high YTD growth (and/or a large market share of private work); lodging +30%, office +27%, Amusement +22%, commercial +10% and power +8%. These five markets combined represent 29% of private spending and combined are up +15% YTD for a net impact of +4.4% to private work.
For a base of reference, here’s a few points in spending history.
Total Construction Spending
- 8 years 1998-2005 up 77%
- 3 years 2003-2005 up 32%
- 3 years 2008-2010 down 30%
- 4 years 2012-2015 up 41%
- 8 years 1998-2005 up 133%
- 3 years 2003-2005 up 57%
- 3 years 2007-2009 down 60%
- 3 years 2013-2015 up 60%
- 5 years 2004-2008 up 64%
- 3 years 2006-2008 up 45%
- 3 years 2009-2011 down 36%
- 2 years 2014-2015 up 25%
- 7 years 1995-2001 up 56%
- 4 years 2005-2008 up 60%
- 3 years 2009-2011 down 8%
- 3 years 2012-2014 up 19%
